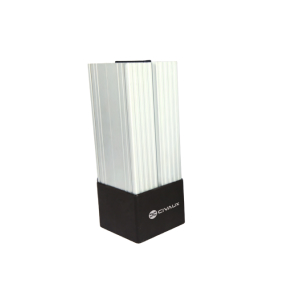

Semiconductor Heater With Fan 350 W
CHRF 350
Civaux heaters are designed for low energy consumption, ensuring operational efficiency without excessive electricity costs. The self-regulating PTC technology adjusts power usage based on ambient temperature, preventing unnecessary energy waste.
Semiconductor Heater With Fan 350 W
The Civaux Semiconductor Heater with Fan 350W is a high-capacity, efficient heating solution designed to safeguard sensitive electrical and electronic components in large enclosures, control panels, and industrial systems. Featuring PTC (Positive Temperature Coefficient) technology and an integrated fan, this heater provides uniform heat distribution throughout the enclosure, ensuring consistent temperature to protect against condensation and moisture-related damage.
Semiconductor Heater With Fan 350 W
Features
- Pressure clamp connectors
- Dynamic heating up
- Integrated axial fan
- Energy saving
- Clip fixing
- Quick installation
download
Technical Details
Overview technical data
| Operating voltage | 230V AC 50/60 hz |
|---|---|
|
Heating Power |
350 W
|
|
Temperature Safety Protection |
In the case of fan failure overheat protection |
|
Heating element |
Nickel – Chromium Wire |
|
Heater body |
Extruded aluminum profile, anodized
|
|
Axial Fan, ball bearing |
Airflow, free flow 45m3 h (50HZ) or 54 m 3 h(60HZ) | Service life 50,000 at 25 0 C (+77 0 F) |
|
Service Life |
VDE: NO / NC >15,000 cycles UL: NO / NC >30,000 cycles |
|
Connection |
3 pressure clamps for stranded wire 0.5 – 1.5 mm2 (with wire end ferrule) and rigid wire 0.5 – 2.5 mm 2 |
|
Connection Casing |
Plastic according to UL94 V-0,black
|
|
Mounting |
Clip for 35 mm DIN rail , EN 60715 |
|
Fitting Position |
Vertical airflow ( air outlet up, connection on bottom) |
|
Operating / Storage temperature |
– 45 to 700C (- 49 to + 158 0 F ) |
|
Operating / Storage humidity |
max. 90% RH (non- condensing) |
|
Protection type / Protection Class |
IP 20 / | (earthed) |
